Working with HVAC systems requires precision, and that starts with knowing the exact refrigerant levels. Even small errors can affect performance, energy use, and system lifespan. The right tools give us accurate measurements and help us maintain systems safely and efficiently.
We often rely on core tools like gauges and digital manifolds, but supporting accessories and protective gear play an equally important role. Each tool has a specific purpose, and using them together ensures reliable results without guesswork.
As we explore essential tools, we’ll also look at safety practices and specialized equipment that make maintenance and troubleshooting more effective. By understanding which tools matter most, we can approach every job with confidence and accuracy.
Core Tools for Accurate Refrigerant Measurement
To measure refrigerant levels correctly, we rely on tools that give precise readings of pressure, temperature, and weight. Each tool plays a specific role in diagnosing and servicing an HVAC or cooling system.

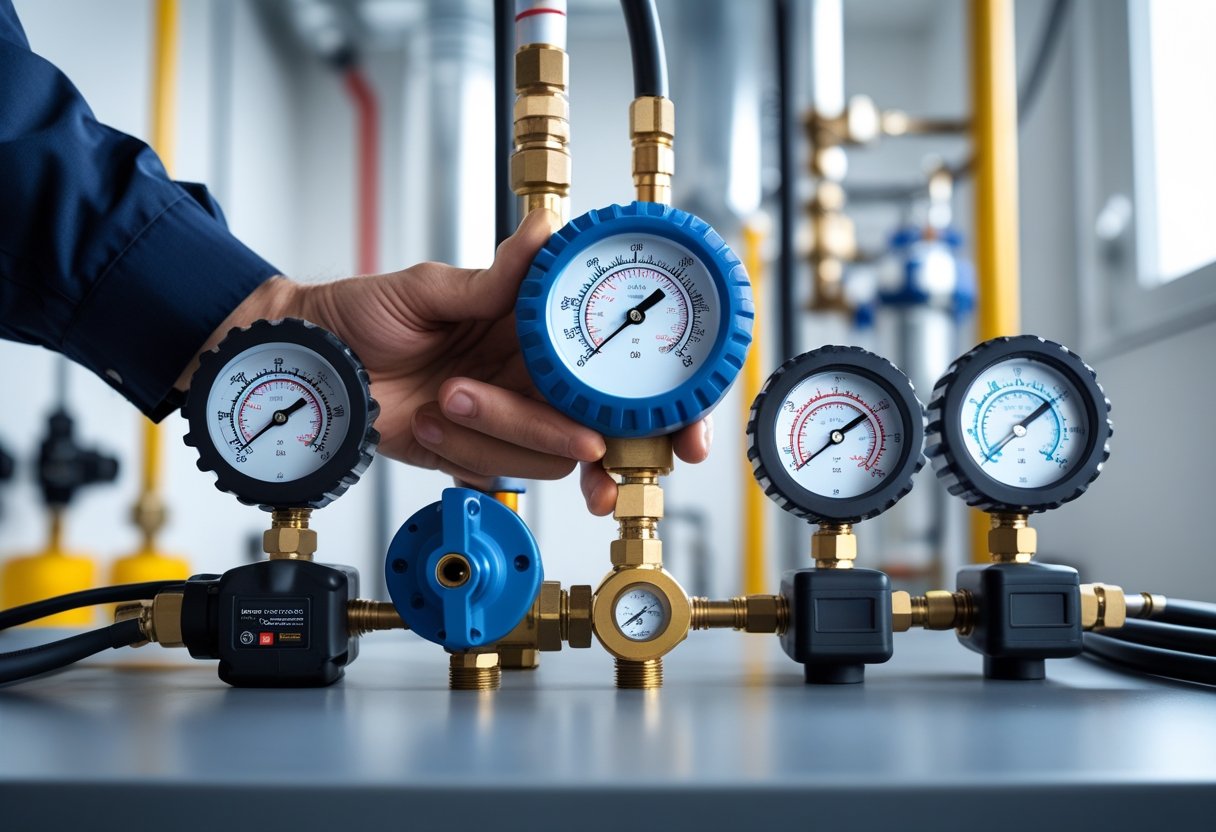

Manifold Gauge Sets
A manifold gauge set is one of the most common HVAC tools we use. It measures both high and low refrigerant pressure in an air conditioning system. By connecting the hoses to service ports, we can monitor system performance and detect issues like leaks or improper charge.
Most sets include two gauges:
- Low-pressure gauge (blue): Measures suction pressure.
- High-pressure gauge (red): Measures discharge pressure.

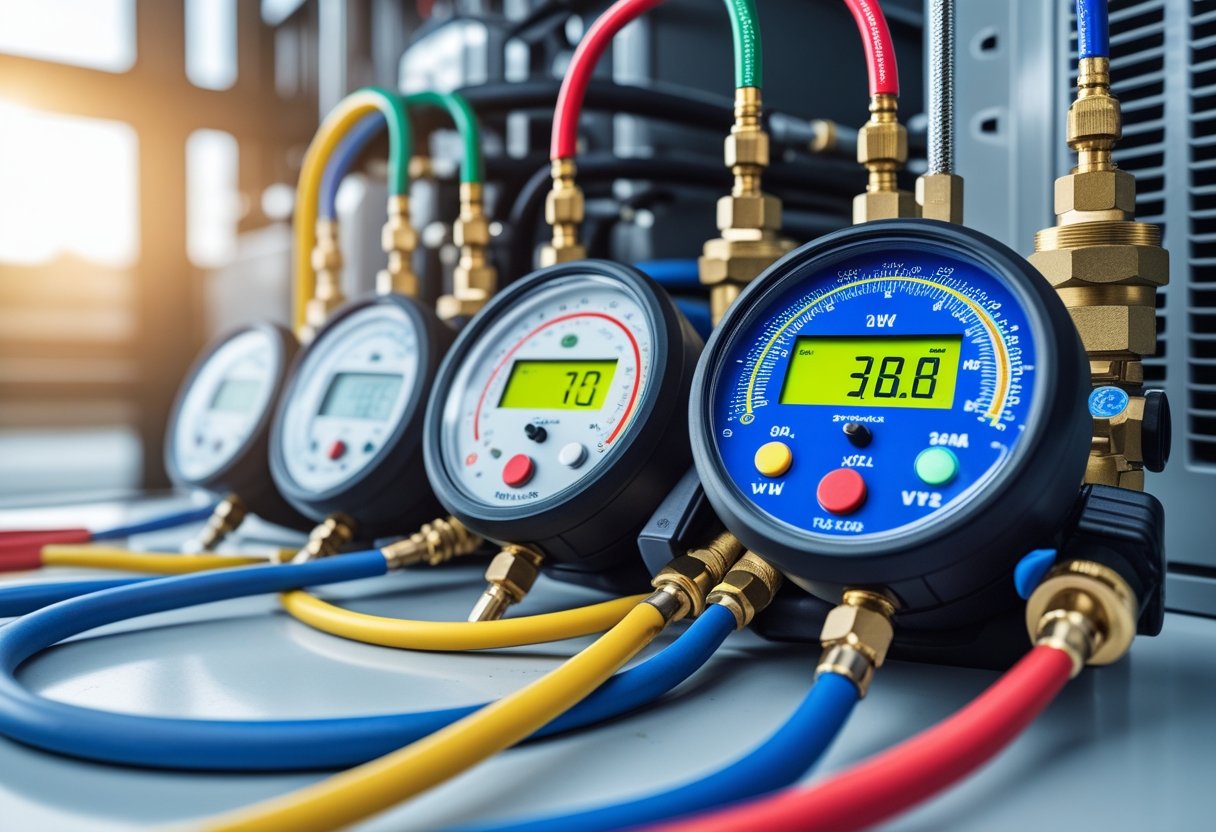

We also use the center hose to add or recover refrigerant. Analog gauges are still common, but digital manifold gauges provide more accurate readings and often include temperature calculations. Choosing the right set depends on the refrigerant type and the system we are servicing.
Refrigerant Scales
A refrigerant scale measures the exact weight of refrigerant added to or removed from a system. This is critical because even small errors in charge can reduce efficiency or damage components. We place the cylinder on the scale and track weight changes in real time.
Digital refrigerant scales are preferred because they offer precise measurements, often down to fractions of an ounce. Many also include features like auto shutoff or memory functions for repeated tasks.
Using a scale ensures compliance with manufacturer specifications. Without one, we risk overcharging or undercharging the system, which can lead to poor cooling performance and higher energy use.
Digital Thermometers
A digital thermometer allows us to measure refrigerant line temperatures, air supply, and return air temperatures. These readings help confirm whether the system is operating within expected ranges.
We often use clamp-style thermometers that attach directly to refrigerant lines. This makes it easy to calculate superheat and subcooling, which are key indicators of correct refrigerant charge.
Digital thermometers are faster and more accurate than traditional dial models. Some models include dual probes, letting us measure two points at once for better system analysis. Consistent temperature readings help us diagnose issues like restricted airflow or improper refrigerant levels.
Vacuum Gauges
A vacuum gauge measures the level of vacuum when we evacuate a system before charging it with refrigerant. Removing air and moisture is critical because both can cause system damage and reduce efficiency.
Digital vacuum gauges are more accurate than analog models, often measuring down to microns. This precision helps us confirm when the system is properly evacuated.
We connect the vacuum gauge to the manifold set or directly to the system. By monitoring the gauge, we verify that the vacuum holds steady, which indicates no leaks are present. This step ensures the system is ready for a proper refrigerant charge.

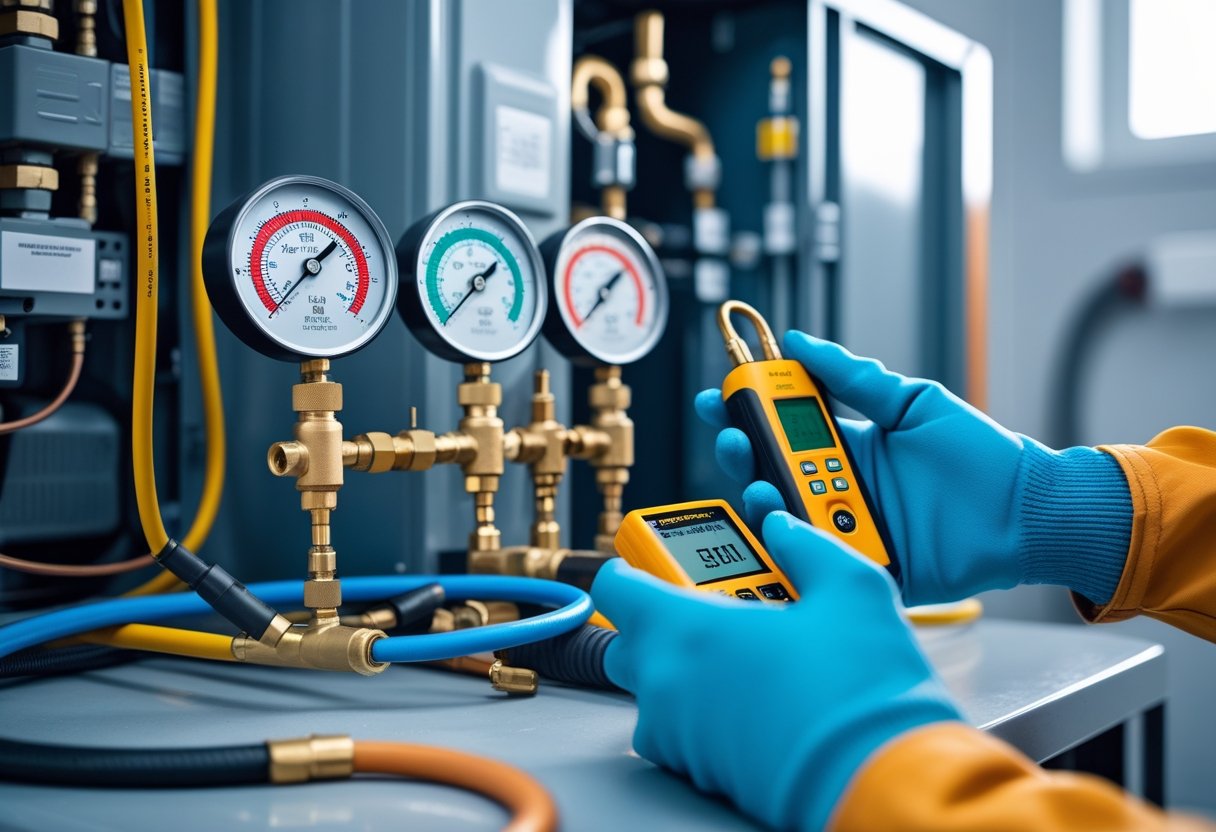

Supporting Tools and Accessories
We rely on more than just gauges to measure refrigerant levels. Proper hoses, leak detection devices, and recovery equipment help us handle refrigerant safely and keep systems performing as expected.
Charging Hoses and Connectors
Charging hoses allow us to connect gauges and service ports securely. A good set should have strong fittings, flexible material, and a design that resists leaks under pressure. Using poor-quality hoses can lead to inaccurate readings or refrigerant loss.
We typically use hoses with low-permeation barriers. These reduce refrigerant escape and meet current environmental standards. Color-coded hoses also help us identify high side, low side, and vacuum connections quickly.
Connectors, such as quick-couplers, make the process safer. They reduce the chance of refrigerant spray when attaching or removing hoses. Many connectors include built-in shut-off valves, which prevent unnecessary venting.
When selecting hoses and connectors, we look for compatibility with the refrigerants we service. Proper maintenance, such as checking for cracks or worn seals, ensures accurate charging and prevents contamination.
Leak Detectors
A leak detector helps us find refrigerant leaks that are not visible. Even small leaks can reduce system efficiency and waste costly refrigerant. Detecting them early avoids larger repairs later.
We use electronic leak detectors most often. These tools sense refrigerant gases in the air and alert us with sound or light signals. Some models can detect leaks as small as 0.1 ounces per year.
Other options include ultrasonic detectors, which pick up the sound of gas escaping under pressure, and dye testing, where UV light reveals leaks at joints or fittings. Each method has strengths depending on the system and environment.
Regular calibration and sensor cleaning keep detectors accurate. Without proper maintenance, readings may be unreliable and lead us to miss active leaks.
Recovery Machines
A recovery machine, also called a refrigerant recovery machine, removes refrigerant from a system so we can store or recycle it. This step is required before major repairs or disposal of equipment.
We use these machines to meet refrigerant handling regulations and to protect the environment. Venting refrigerant directly into the air is not permitted. Recovery ensures safe storage in approved cylinders.
Modern recovery machines are designed for both high-pressure and low-pressure refrigerants. They often include automatic shut-off features that stop the process when the cylinder is full.
Key features we look for include:
- Oil-less compressors for cleaner recovery
- High recovery rates to save time
- Compatibility with multiple refrigerant types
Proper use of recovery machines extends the life of our diagnostic tools and prevents cross-contamination between systems. Regular maintenance, such as cleaning filters, ensures reliable performance.
Safety Equipment and Best Practices
We reduce risks and improve accuracy when we use the right protective gear, follow safe refrigerant handling methods, and choose tools designed with compact layouts that save space and energy. These steps protect us as HVAC technicians while keeping our work efficient and consistent.
Gloves and Safety Glasses
We always wear gloves and safety glasses when working with refrigerants. Gloves prevent skin contact with cold liquid refrigerant, which can cause frostbite or irritation. Safety glasses protect our eyes from sudden leaks or splashes that may occur when attaching gauges or hoses.
Different gloves offer different levels of protection. Nitrile gloves resist chemicals better than latex, while insulated gloves provide extra protection against extreme cold. We select gloves based on the refrigerant type and the task at hand.
Eye protection is just as important. ANSI-approved safety glasses with side shields block refrigerant mist and small debris. For higher-risk jobs, we use face shields for added coverage.
We keep protective gear in good condition. Worn-out gloves or scratched lenses reduce effectiveness. Regular checks and timely replacements ensure we stay safe during every service call.
Safe Refrigerant Handling
We handle refrigerant carefully to avoid leaks, exposure, and waste. Proper handling protects our health and reduces unnecessary energy consumption caused by system inefficiency.
Before connecting gauges, we confirm that hoses and fittings are in good condition. A damaged seal can release refrigerant into the air, which is unsafe and harmful to the environment.
We also use recovery machines when removing refrigerant from a system. Venting refrigerant is not only unsafe but also against regulations. Recovery ensures the refrigerant can be reused or properly disposed of.
Clear labeling of refrigerant cylinders prevents mix-ups. We store them upright in cool, ventilated spaces to reduce pressure buildup. When transporting, we secure cylinders to prevent tipping or damage.
Compact Design Considerations
We look for tools with a compact design because they make fieldwork easier and safer. Bulky gauges and hoses can create clutter, which increases the chance of tripping or damaging connections.
Compact tools also help us work in tight spaces, such as small mechanical rooms or rooftop units. They allow us to move freely without sacrificing accuracy in measurements.
Another benefit is reduced energy consumption in digital tools. Smaller, efficient devices often use less power, which means longer battery life and fewer interruptions during service.
We also notice that compact tools are easier to carry. A lighter tool bag reduces strain over long workdays and helps us stay organized. For HVAC technicians, this balance of safety, efficiency, and portability improves both accuracy and workflow.
Specialized Tools for Maintenance and Troubleshooting
We rely on precise tools to keep systems running safely and to detect issues before they cause damage. Using the right equipment helps us cut tubing cleanly and identify refrigerant leaks with accuracy.
Tube Cutters
A tube cutter allows us to make clean, square cuts on copper or aluminum lines. This is important because rough edges or uneven cuts can lead to poor connections and leaks. Unlike a hacksaw, a tube cutter reduces metal shavings that could enter the system.
Most cutters have an adjustable knob that tightens the cutting wheel around the tubing. We rotate the cutter around the pipe, tightening slightly with each turn until the tube separates. This process creates a smooth edge that requires minimal deburring.
Key advantages of tube cutters:
- Cleaner cuts with less risk of leaks
- Faster and more precise than saws
- Available in sizes for different tubing diameters
We often use compact cutters in tight spaces where larger tools do not fit. Choosing the correct size cutter ensures we do not damage the tubing or flatten it during the cut.
Advanced Diagnostic Equipment
Diagnostic tools help us measure system performance and detect hidden issues. Digital manifolds, electronic leak detectors, and wireless probes give us accurate readings that are easier to interpret than analog gauges.
Electronic leak detectors are especially useful for finding small refrigerant leaks that may not show up with soap bubbles. These tools sense refrigerant gases in the air and alert us with sound or visual signals.
We also use wireless probes to monitor pressures and temperatures in real time. This data helps us compare readings across multiple points in the system. By reviewing these values, we can confirm charge levels, identify restrictions, and verify proper operation.
Using advanced diagnostic equipment reduces guesswork and helps us troubleshoot problems faster. It ensures we maintain efficiency while preventing costly refrigerant loss.
